Antminer S9 14 Th/s Specifications:

• Hash Rate : 14TH/s , depending on batch. Variation of ±5% is expected
• Power Consumption 1372W (14TH/s batch) (at the wall, with Bitmain’s APW3 PSU,93% efficiency, 25°C ambient temp). Expected discrepancy of +10%
• Power Efficiency0.098 J/GH +10% at the wall (with Bitmain’s APW3 PSU, 93% efficiency, 25°C ambient temp)
• Rated Voltage - 11.60 ~13.00V
• Chip quantity per unit - 189x BM1387
• Dimensions - 350mm(L) x 135mm(W) x 158mm(H)
• Cooling - 2x 12038 fans
• Front fan: 6000rpm,
• Rear fan: 4300rpm
• Operating Temperature -0°C to 40°C
• Network Connection - Ethernet
• Frequency - Automatically set

Notes

• Please select the correct address for shipping before you submit your order the shipping address cannot be changed after the order has been submitted.
• Power consumption figures will vary with your PSU's efficiency, the ambient operating temperature and the accuracy of the power meter.

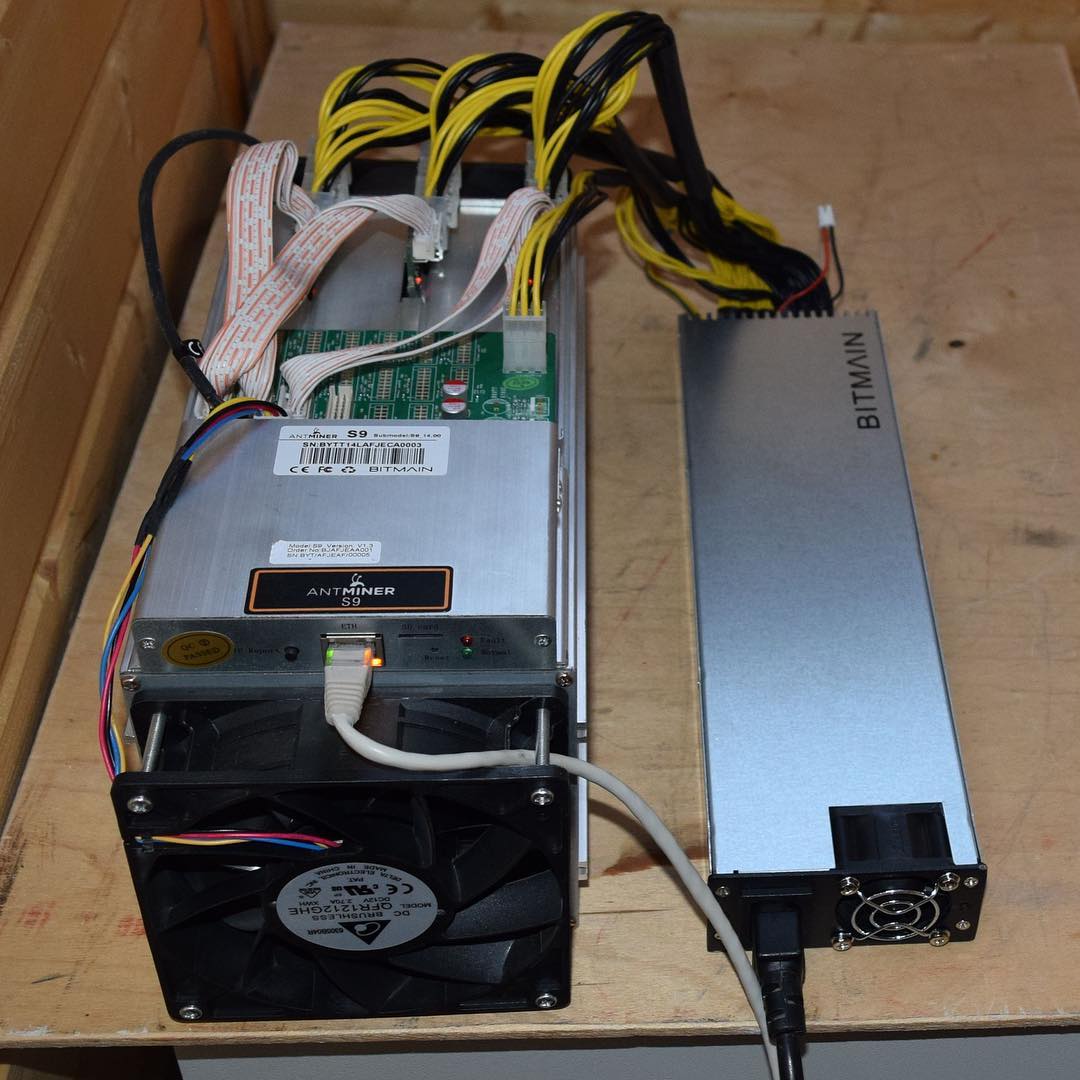

• You will need an ATX PSU. Bitmain recommends the APW3++ for the S9 miners. It cannot power more than one miner.
• There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 need to be connected to the PSU for the hashboard to operate. Do not connect more than one PSU to the same hashing board!

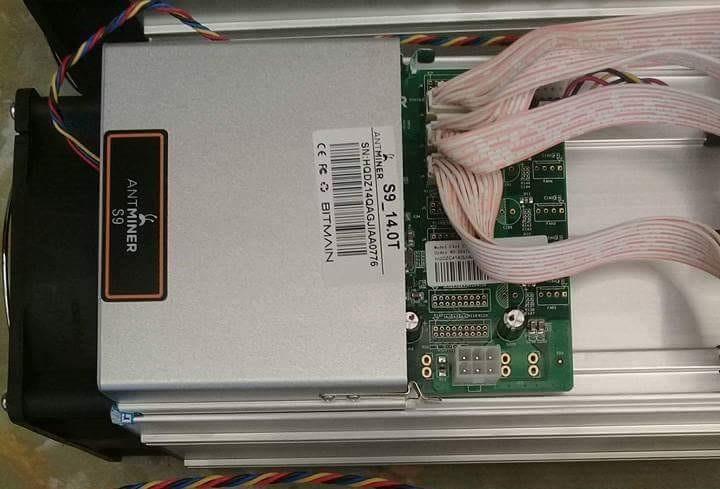

• Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner only after all the 10x PCIE connectors are connected to power supply.
